Product Description
Specs are as follows:

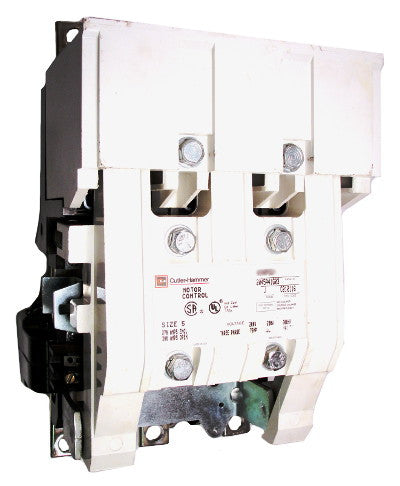

Magnetic Contactor, Nema Size 5, 270 Amps, 3 Poles, 240VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Clapper Design, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 75 @ 208V/3 Phase, 100 @ 240V/3 Phase, 200 @ 480V/3 Phase, 200 @ 600V/3 Phase.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Amperage | 270 |
Coil Voltage | 240V AC Standard (2050A14G10) |
Phase | 3 |
Voltage Max | 600 |
Nema Size | 5 |
Coil Type | Magnetic |
Enclosure | Open |
Reversing or Non-Reversing | Non-Reversing |
Maximum Ratings | 75 @ 208V/3 Phase, 100 @ 240V/3 Phase, 200 @ 480V/3 Phase, 200 @ 600V/3 Phase |
Application | Full Voltage |
