8536-SJO2-V06S
Product Description
Magnetic Motor Starter, Nema Size 7, 810 Amps, 3 Poles, 480VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings (3 Phase): 300 @ 230VAC, 600 @ 460VAC, 600 @ 575VAC

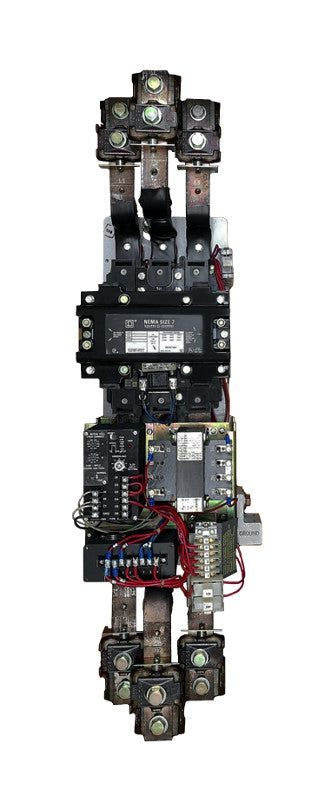

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Amperage | 810 |
| Coil Voltage | 480VAC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 7 |
| Coil Type | Magnetic |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 300 @ 230VAC, 600 @ 460VAC, 600 @ 575VAC |
| Application | Full Voltage |
