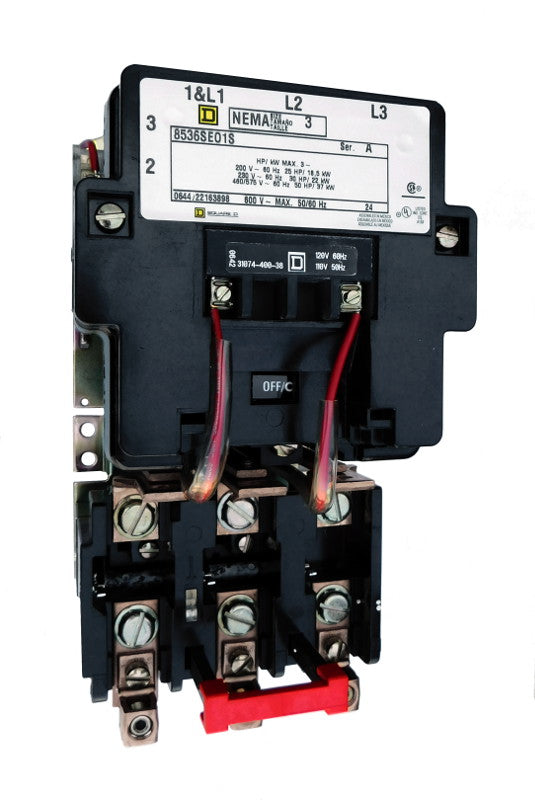

8536-SEO1-V02S Magnetic Motor Starter, Nema Size 3, 90 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings (3 Phase): 25 @ 200VAC, 30 @ 230VAC, 50 @ 460VAC, 50 @ 575VAC. New Surplus and Certified Reconditioned with 1 Year Warranty.

8536-SEO1-V02S

by Square-D

New Surplus

Click for Info
$1,295.00

Certified Reconditioned

Qty in Stock: 1

$895.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

Magnetic Motor Starter, Nema Size 3, 90 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings (3 Phase): 25 @ 200VAC, 30 @ 230VAC, 50 @ 460VAC, 50 @ 575VAC

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications


Manufacturer Square-D
Warranty One Year
Amperage 90
Coil Voltage 120 VAC
Phase 3
Voltage Max 600
Nema Size 3
Coil Type Magnetic
Reversing or Non-Reversing Non-Reversing
Maximum Ratings 25 @ 200VAC, 30 @ 230VAC, 50 @ 460VAC, 50 @ 575VAC
Application Full Voltage
