509-EOD

New Surplus

Qty in Stock: 1

$2,795.00

Certified Reconditioned

Qty in Stock: 2

$1,995.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

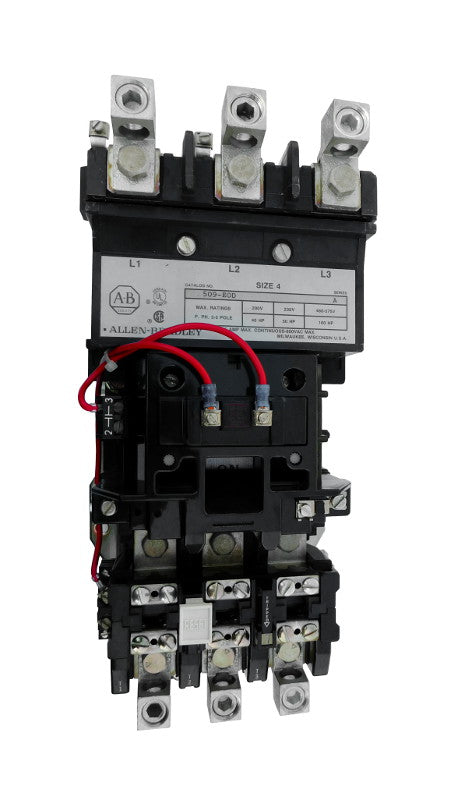

Magnetic Motor Starter, NEMA Size 4, 135 Amps, 3 Poles, 110/120V AC Coil, Motor Voltage 575V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 40 @ 200VAC, 50 @ 230VAC, 75 @ 415VAC, 100 @ 575VAC, Line and Load End Terminals Standard

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications


Manufacturer Allen-Bradley
Warranty One Year
Amperage 135
Coil Voltage 110/120
Phase 3
Voltage Max 575
Nema Size 4
Reversing or Non-Reversing Non-Reversing
Maximum Ratings 40 HP @ 200VAC, 50 HP @ 230VAC, 75 HP @ 415VAC, 100 HP @ 575VAC
Standard Lug Type Line and Load
