Product Description
Specs are as follows:

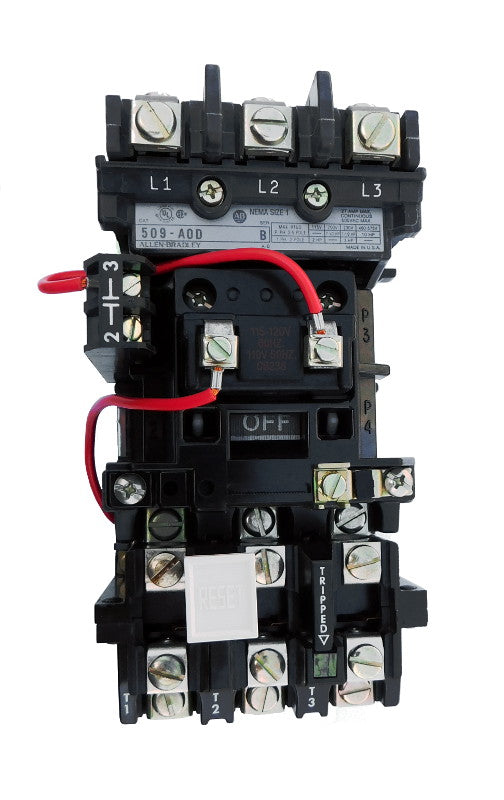

Magnetic Motor Starter, NEMA Size 0, 18 Amps, 3 Poles, 220/240V AC Coil, Motor Voltage 575V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 3 @ 200VAC, 3 @ 230VAC, 5 @ 415VAC, 5 @ 575VAC, Line and Load End Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Allen-Bradley |
---|---|
Warranty | One Year |
Amperage | 18 |
Coil Voltage | 220/240 |
Phase | 3 |
Voltage Max | 575 |
Nema Size | 0 |
Reversing or Non-Reversing | Non-Reversing |
Maximum Ratings | 3 HP @ 200VAC, 3 HP @ 230VAC, 5 HP @ 415VAC, 5 HP @ 575VAC |
Standard Lug Type | Line and Load |
