500-GOA930
Product Description
Magnetic Motor Contactor, NEMA Size 6, 540 Amps, 3 Poles, 220/240V AC Coil, Motor Voltage 575V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 150 @ 200VAC, 200 @ 230VAC, 300 @ 415VAC, 400 @ 575VAC, with Normally Open Auxiliary Installed Standard, Line and Load End Terminals Standard

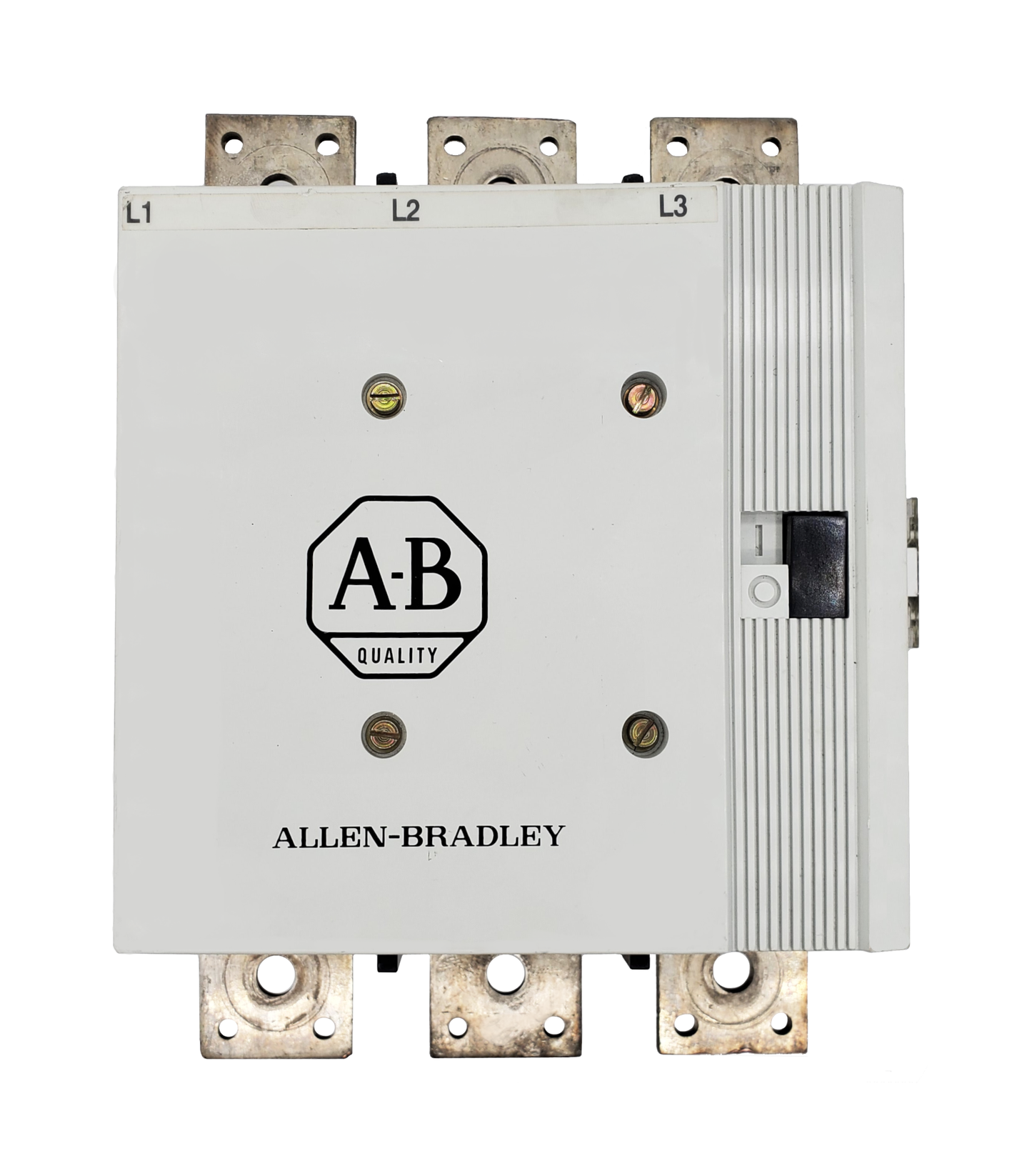

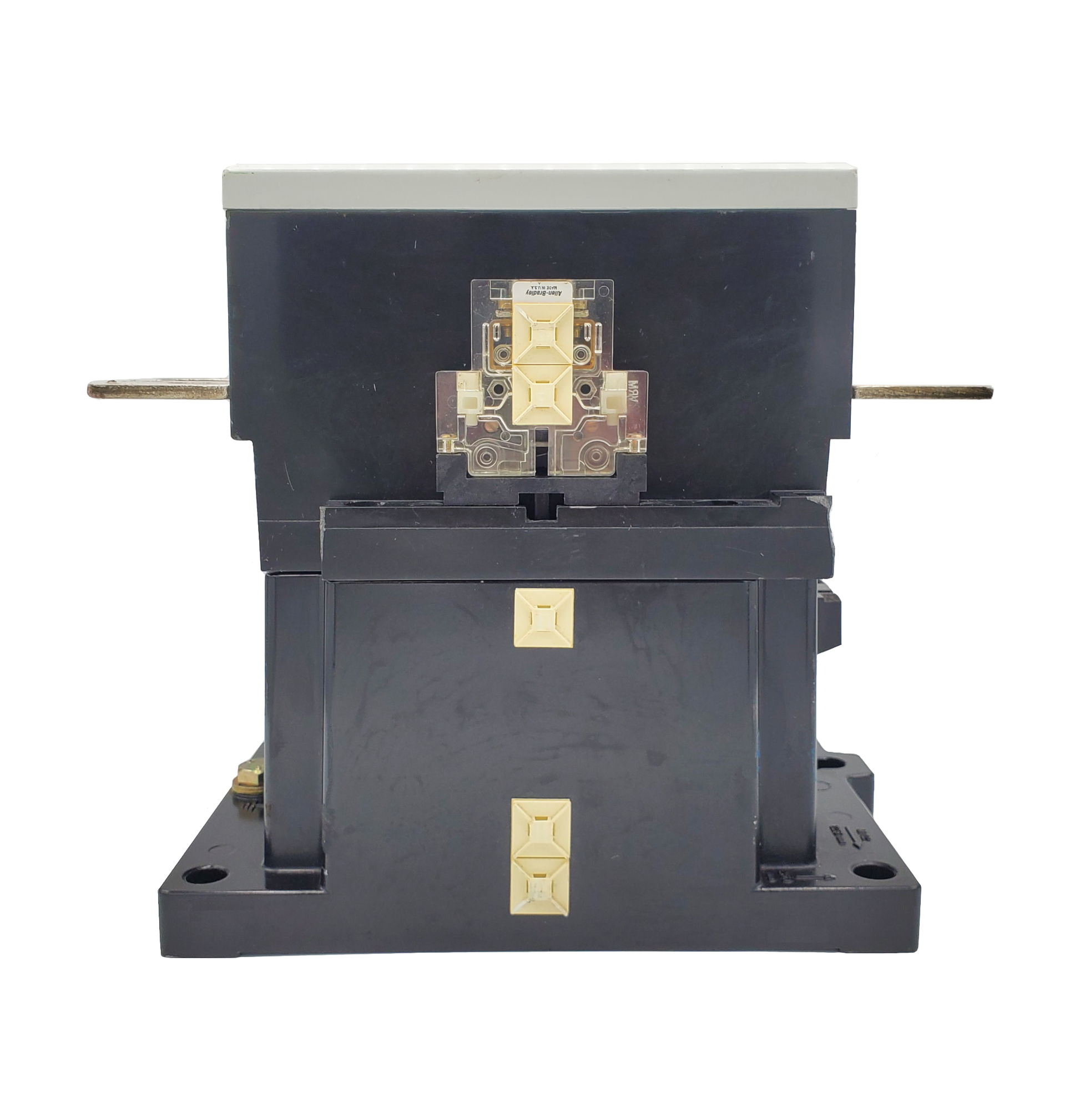

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Allen-Bradley |
|---|---|
| Warranty | One Year |
| Amperage | 540 |
| Coil Voltage | 220/240 |
| Phase | 3 |
| Voltage Max | 575 |
| Nema Size | 6 |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 150 HP @ 200VAC, 200 HP @ 230VAC, 300 HP @ 415VAC, 400 HP @ 575VAC |
| Standard Lug Type | Line and Load |
New Surplus
Certified Reconditioned
Qty in Stock: 1
$5,995.00
