L-Frame-Mining

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal-Magnetic Trip Unit, 350 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type L Amperage 350 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 1750-3500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Instantaneous Only, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Instantaneous Only, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 1000-4000 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Instantaneous Only, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 1000-4000 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Instantaneous Only, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2LM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long Instantaneous, 600 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 1000 Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

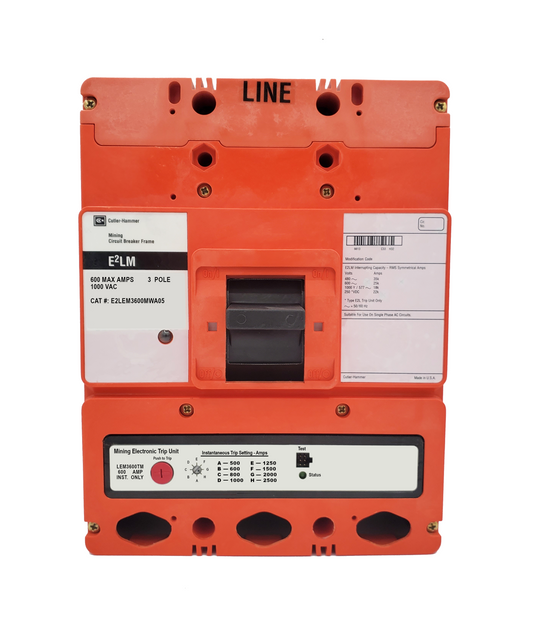

Product Description Specs are as follows: E2LM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Instantaneous Only, 600 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 1000 Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2LM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Instantaneous Only, 600 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A05 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Right] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A05 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Right] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 1000 Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

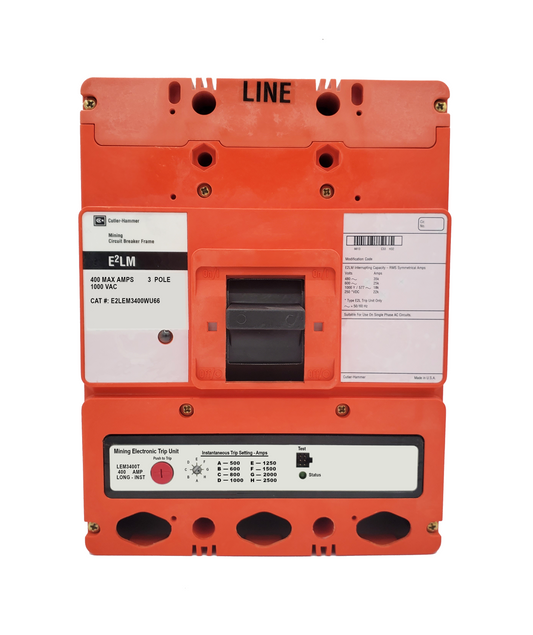

Product Description Specs are as follows: E2LM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 400 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 1000 Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 1000-4000 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2LM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 400 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 1000 Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2LM Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Instantaneous Only, 400 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Right Pole Mounted, Exiting Rear], U66 Option Includes: [120 VAC UVR Installed, With LED, Left Pole Mounted, Exiting Rear] Connection Bolt On Frame Type L Amperage 400 Poles 3 Voltage Max 1000 Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, T13 Option Includes: [110-125V DC UVR, Left Pole Mounted, Exiting Left] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration T13 Option Includes: [110-125V DC UVR, Left Pole Mounted, Exiting Left] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 1125-2250 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, A05 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary, Right Pole Mounted, Exiting Right], S41 Option Includes: [110-125V DC Shunt Trip, Left Pole Mounted, Exiting Left] This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration A05 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary, Right Pole Mounted, Exiting Right], S41 Option Includes: [110-125V DC Shunt Trip, Left Pole Mounted, Exiting Left] Connection Bolt On Frame Type L Amperage 600 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 1125-2250 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2LM Frame Style, Molded Case Mining Circuit Breaker, Frame Only, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type L Amperage 600 Max Poles 3 Voltage Max 1000 Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Frame Only, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type L Amperage 600 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Only Trip Unit, Instantaneous Only, 600 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC , Without Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Frame Type L Amperage 600 Poles 3 Voltage Max 1000 VAC Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 2500-5000 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Only Trip Unit, Instantaneous Only, 600 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC , Without Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Frame Type L Amperage 600 Poles 3 Voltage Max 1000 VAC Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Only Trip Unit, Instantaneous Only, 400 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Frame Type L Amperage 400 Poles 3 Voltage Max 1000 VAC Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 1000-4000 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Only Trip Unit, Instantaneous Only, 400 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC , Without Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Frame Type L Amperage 400 Poles 3 Voltage Max 1000 VAC Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 500-2500 Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Only Trip Unit, Long/Instantaneous, 600 Ampere at 40 Degree Celsius, 3 Pole, 1000VAC @ 50/60HZ, Interrupting Ratings: 6 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC , Without Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Frame Type L Amperage 600 Poles 3 Voltage Max 1000 VAC Interrupting Capacity Rating 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 18 Kiloampere @ 1000VAC, 22 Kiloampere @ 250VDC Trip Setting 2500-5000 Standard Lug Type Without Terminals Standard
